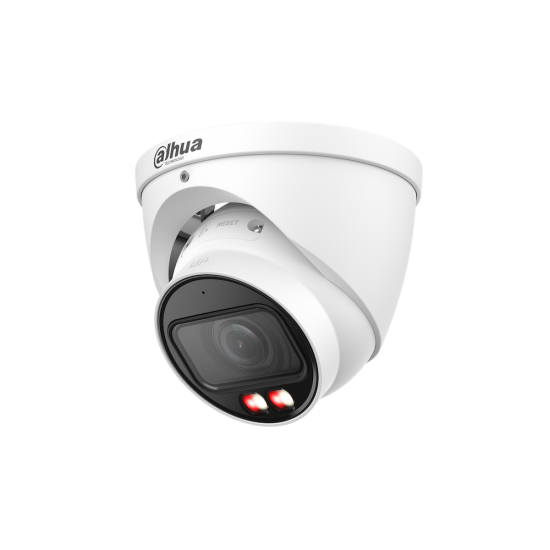

IPC-HDW2649T-ZS-IL-27135
Περιγραφή
- 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 6MP (3288 ? 1850)@20 fps, and supports 2688?1520 (2688 ? 1520)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 40 m and the max. warm light distance is 40 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 256 G Micro SD card; built in Mic.
- 12 VDC/PoE power supply.
- IP67 protection.
- SMD Plus.
| Aισθητήρας | 1/2.7" CMOS |
| Effective Pixels | 3288 (H) x 1850 (V) |
| Min. Illumination | 0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | 40 m |
| Φακός | 2.7 mm13.5 mm |
| Field of view | H: 114°32°; V: 58°17°; D: 138°36° |
| Max Aperture | F1.5 |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Video Frame Rate | Main stream: 3288 x 1850@(120 fps)/2688 x 1520@(125/30 fps) sub stream: 704 x 576@(125 fps)/704 x 480@(130 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Built-in MIC | Yes |
| Power Supply | 12V DC/PoE |
| Power Consumption | Basic: 2.7 W (12 VDC); 3.3 W (PoE); Max.: 8.4 W (12 VDC); 10.1 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) |
| Material | Metal IP67 |
