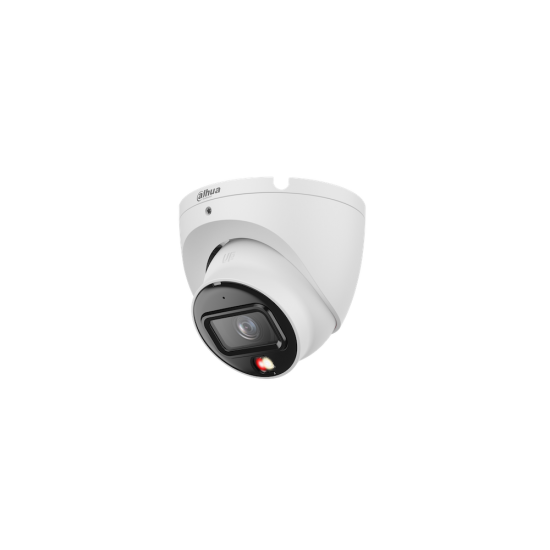

IPC-HDW1839T-A-IL-0280B-S6
Περιγραφή
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 ? 2160) @20 fps, and supports 2688 ? 1520@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 20 m.
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Built in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- Supports human detection.
| Aισθητήρας | 1/2.7" CMOS |
| Effective Pixels | 3840 (H) X 2160 (V) |
| Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE); lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| IR Distance | 30 m |
| Φακός | 2.8mm |
| Max Aperture | F1.6 |
| Field of View | H: 110°; V: 58°; D: 132° |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Video Frame Rate | Main stream: 3840 X 2160@(120 fps)/2688 X 1520@ (125/30 fps) sub stream: 704 X 576@(125 fps)/704 X 480@(130 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Built-in MIC | Yes |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.5 W (12 VDC), 3.5 W (PoE); Max.: 4.5 W (12 VDC), 5.8 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) |
| Material | Metal IP67 |
