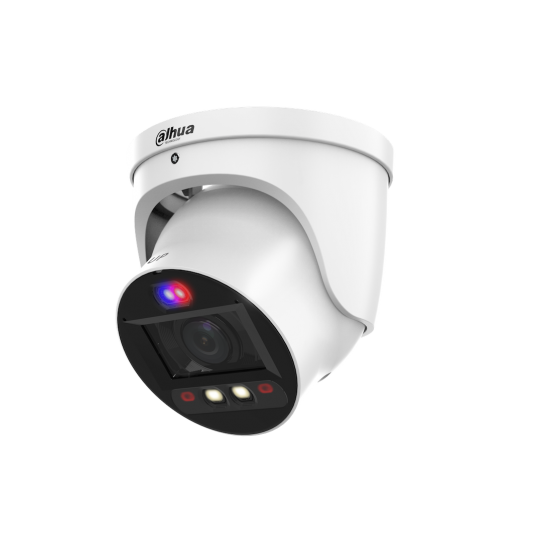

IPC-HDW3549H-ZAS-PV-27135-S5
Περιγραφή
- 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 5 MP (2960?1668) @20 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 4.0.
- Supports AI SSA and one-tap arming and disarming.
- SMD area can be set in warm light areas that support triggering alarms.
| Aισθητήρας | 1/2.7" CMOS |
| Effective Pixels | 2960 (H) x 1668 (V) |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| IR Distance | 50 m |
| Φακός | 2.7 mm13.5 mm motorized |
| Field of view | H: 113°36° V: 57°20° D: 137°40° |
| Max Aperture | F1.0 |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) |
| Video Frame Rate | Main stream: 2880 ? 1620/2960 ? 1668@(120 fps)/2688 ? 1520 @(130 fps) Sub stream: 704 ? 576@(125 fps)/704 ? 480@(130 fps) Third stream: 1920 ? 1080@(125/30 fps) *The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity |
| Built-in MIC | Audio In/Out |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 4 W (12 VDC); 5 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.5 W (12 VDC); 10.6 W (PoE) |
| Material | Metal IP67 |
