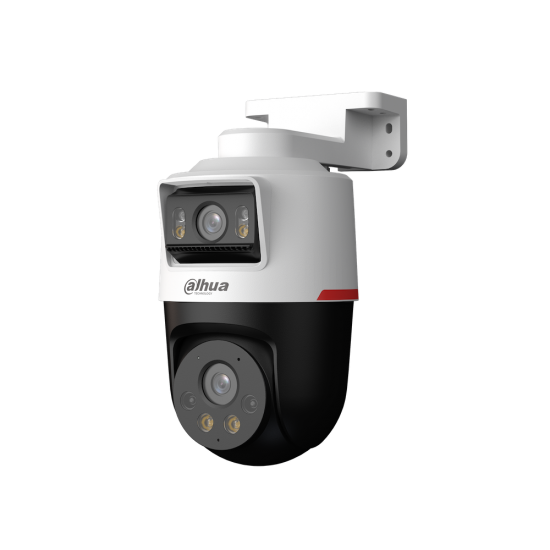

IPC-PTS2249B-E2-S-PV-LED-0360B-PRO
Περιγραφή
- 2-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 2 MP (1920 ? 1080)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light, and the max. illumination distance is 30 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 256 G Micro SD card; built-in Mic; built-in speaker; supports two-way talk.
- 12 VDC/PoE power supply, easy for installation.
- IP66 protection.
- Sound and light alarm.
- SMD Plus.
- One-tap arming/disarming.
| Aισθητήρας | Channel 1 (PT Lens): 1/2.9" CMOS Channel 2 (Fixed Lens): 1/2.9" CMOS |
| Effective Pixels | Channel 1 (PT Lens): 1920 (H) x 1080 (V) Channel 2 (Fixed Lens): 1920 (H) x 1080 (V) |
| Min. Illumination | 0.0006 lux@F1.0 |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Φακός | Channel 1 (PT Lens): 3.6 mm Channel 2 (Fixed Lens): 3.6 mm |
| Field of view | Channel 1 (PT Lens): H: 81°; V: 44°; D: 95° Channel 2 (Fixed Lens): H: 81°; V: 44°; D: 95° |
| Max Aperture | F1.0 |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream) |
| Video Frame Rate | Channel 1 (PT Lens): Main stream: 1920 ? 1080@(125/30 fps) sub stream: 704 ? 576@(125 fps)/704 ? 480@(130 fps) Channel 2 (Fixed Lens): Main stream: 1920 ? 1080@(125/30 fps) sub stream: 704 ? 576@(125 fps)/704 ? 480@(130 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Built-in MIC | Yes |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 2.3 W (12 VDC); 3.1 W (PoE); Max.: 9.2 W (12 VDC); 10.5 W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on) |
| Material | Plastic IP66 |
