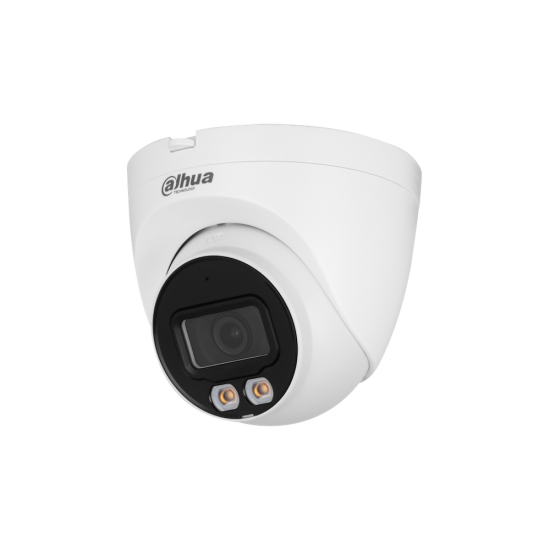

IPC-HDW2449T-S-LED-0280B-PRO
Περιγραφή
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2688? 1520)@20 fps, and supports (2560?1440)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and the max. illumination distance is 30 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 256 G Micro SD card; built in Mic.
- 12 VDC/PoE power supply.
- IP67 protection.
- SMD Plus.
| Aισθητήρας | 1/2.9" CMOS |
| Effective Pixels | 2688 (H) x 1520 (V) |
| Min. Illumination | 0.005 lux@F1.0 |
| IR Distance | 30m - 1 (Warm light) |
| Φακός | 2.8mm |
| Field of view | H: 101°; V: 53°; D: 120° |
| Max Aperture | F1.0 |
| Video Compression | Smart H.265+; Smart H.264+ H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Video Frame Rate | Main stream: 2688 x 1520@(120 fps)/2566 x 1440@ (125/30 fps) Sub stream: 704 x 576@(125 fps)/704 x 480@(130 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Built-in MIC | Yes |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 2.7 W (12 VDC); 3.5 W (PoE) Max. (H.265+ intelligence on + WDR + illuminator intensity): 6.8 W (12 VDC); 8.2 W (PoE) |
| Material | Metal / Plastic IP67 |
