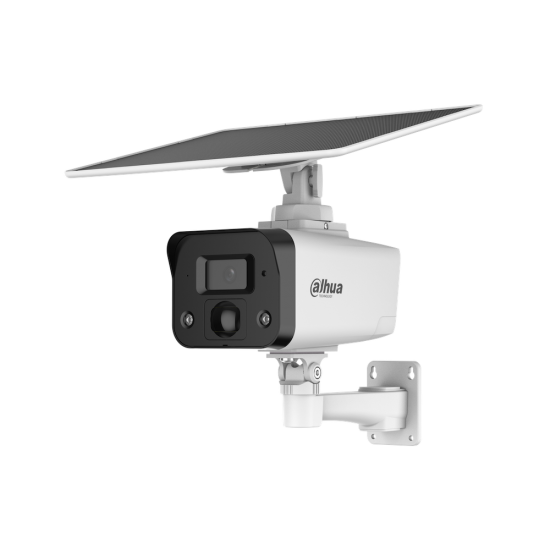

IPC-HFW2441DG-4G-SP-B-0360B-MAX
Περιγραφή
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 ? 1440) @15 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 20 m.
- Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
- Built-in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks.
- Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
- In AOV mode, the camera wakes up when a person or vehicle appears, providing 24/7 surveillance while maintaining ultra-low power consumption.
- Supports max. 512 G Micro SD card; built-in Mic and speaker; supports two-way talk.
- The solar panel offers both integrated and detachable designs, and supports multi-dimensional angle adjustment.
- It features a built-in 64Wh high-capacity lithium iron phosphate battery with stable performance. The MAX version uses a wide-temperature battery, making it suitable for a wider range of regions worldwide.
- It supports both 12 VDC and Type-C power supply options, used respectively for connecting an external solar panel and for temporary charging with a power bank.
- IP67 protection.
- SMD.
| Aισθητήρας | 1/3" CMOS |
| Effective Pixels | 2560 (H) x 1440 (V) |
| Min. Illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| IR Distance | 30m |
| Φακός | 3,6 mm |
| Field of view | H: 78.4°; V: 42.4°; D: 92.4° |
| Max Aperture | F1.6 |
| Video Compression | H.265; H.264B; H.264; MJPEG(Sub Stream 1); smart H.265+; smart H.264+ |
| Video Frame Rate | Main stream: 2560 x 1440@(115 fps) sub stream: 640 x 360@(115 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Built-in MIC | Yes |
| Power Supply | 12 VDC |
| Power Consumption | Ultra power saving mode: 0.036 W; Power saving mode: 0.047 W; AOV mode: 0.26 W; Performance mode: 1.33 W |
| Material | Plastic IP67 |
