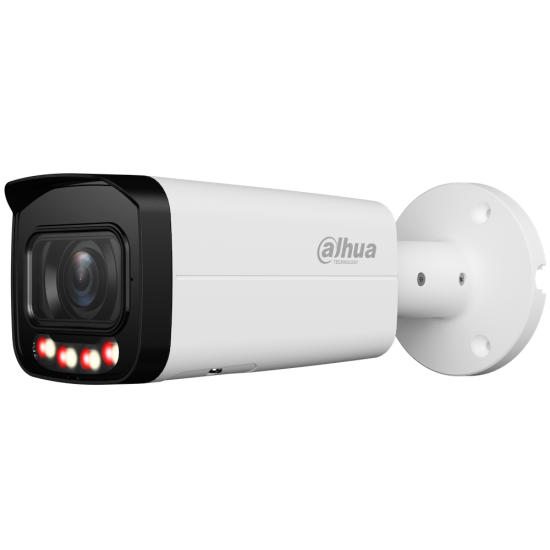

IPC-HFW3849T-ZAS-IL-27135
Περιγραφή
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 ?2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image).
- Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
- 12 VDC/PoE power supply.
- IP67, IK10 (optional, IEC 62262:2002) protection.
- SMD 4.0.
- Supports AI SSA.
- SMD area can be set in warm light areas that support triggering alarms.
| Aισθητήρας | 1/2.7" CMOS |
| Effective Pixels | 3840 (H) x 2160 (V) |
| Min. Illumination | 0.007 lux@F1.4 (Color, 30 IRE) 0.0007 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| IR Distance | 60 m |
| Φακός | 2.7 mm13.5 mm Motorized |
| Max Aperture | F1.4 |
| Field of View | H: 114°32°; V: 58°17°; D: 138°36° |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Video Frame Rate | Main stream: 3840 ? 2160@(1 fps25/30 fps) Sub stream: 1920 ? 1080@(1 fps25/30 fps) Third stream: 1920 ? 1080@(1 fps25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Built-in MIC | In/Out |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 3.8 W (12 VDC); 5.3 W (PoE) Max. :9.9 W (12 VDC); 12.5 W (PoE) (H.265 + WDR + warm light + intelligence on) |
| Material | Metal IP67 |
