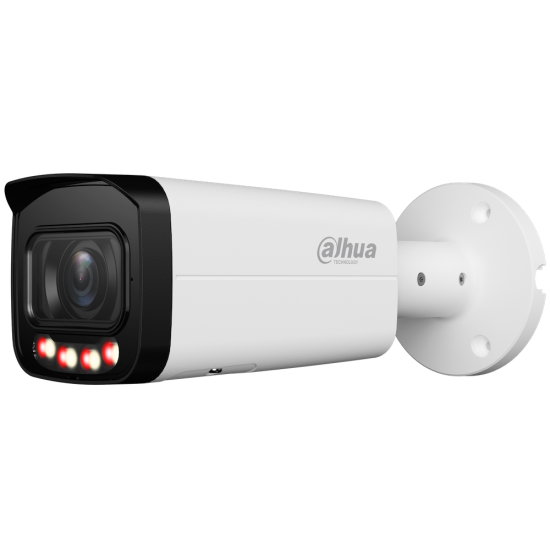

IPC-HFW2849T-ZAS-IL-27135
Περιγραφή
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 x 2160)@20 fps, and supports 2688 ? 1520 (2688 x 1520)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67, IK10 (optional) protection.
- SMD Plus.
| Aισθητήρας | 1/2.7 8Megapixel progressive CMOS |
| Effective Pixels | 3840 (H) x 2160 (V) |
| Min. Illumination | 0.008 lux@F1.5 (Color, 30 IRE) 0.0008 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| IR Distance | 60m |
| Φακός | 2.7 mm13.5 mm Motorized |
| Max Aperture | F1.5 |
| Field of View | H: 114°32°; V: 58°17°; D: 138°36° |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Video Frame Rate | Main stream 3840 x 2160 (1 fps15 fps) 2688 x 1520 (1 fps25/30 fps) sub stream 704 x 576 (1 fps25 fps) 704 x 480 (1 fps30 fps) |
| Built-in MIC | Audio I/O |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 2.6 W (12 VDC), 3.1 W (PoE); Max.: 10.2 W (12 VDC), 12.7 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) |
| Material | Metal IP67 |
